MIURA 200

Fully-automated Clinical Chemistry Analyser - Single / Double arm

up to 420 tests / hour with ISE module on board
up to 240 tests / hour per constant throughput

up to 360 tests / hour with ISE module on board
up to 200  reagent tests / hour

  • The New Miura 200 is the idea we have for a compact bench top random access fully automated analyser with the performance of higher class instruments.
  • No compromise between throughput and size of the New Miura 200.
  • The New Miura 200 is the solution for all kinds of laboratories as a main unit or a back up unit.
  • 30/43 reagents on board plus diluent.
  • 49 samples on board.
  • Integrated ISE module for Na+, K+, Li+, Cl- in serum, plasma and diluted urine (optional).
  • Integrated cuvette washing station.
  • Integrated liquid level detector and probe shock sensor for samples and reagents.
  • Integrated positive identification for samples and reagents by barcodes.
  • Integrated micro metering diluter maintenance free.
  • 2 years warranty.
  • Miura 200 is 100% developed and produced in Italy.



Miura 200 Instrument Code

MIURA 2SA (for single arm instrument)
MIURA 2DA (for double arm instrument)

System

Random access, batch, STAT

Throughput

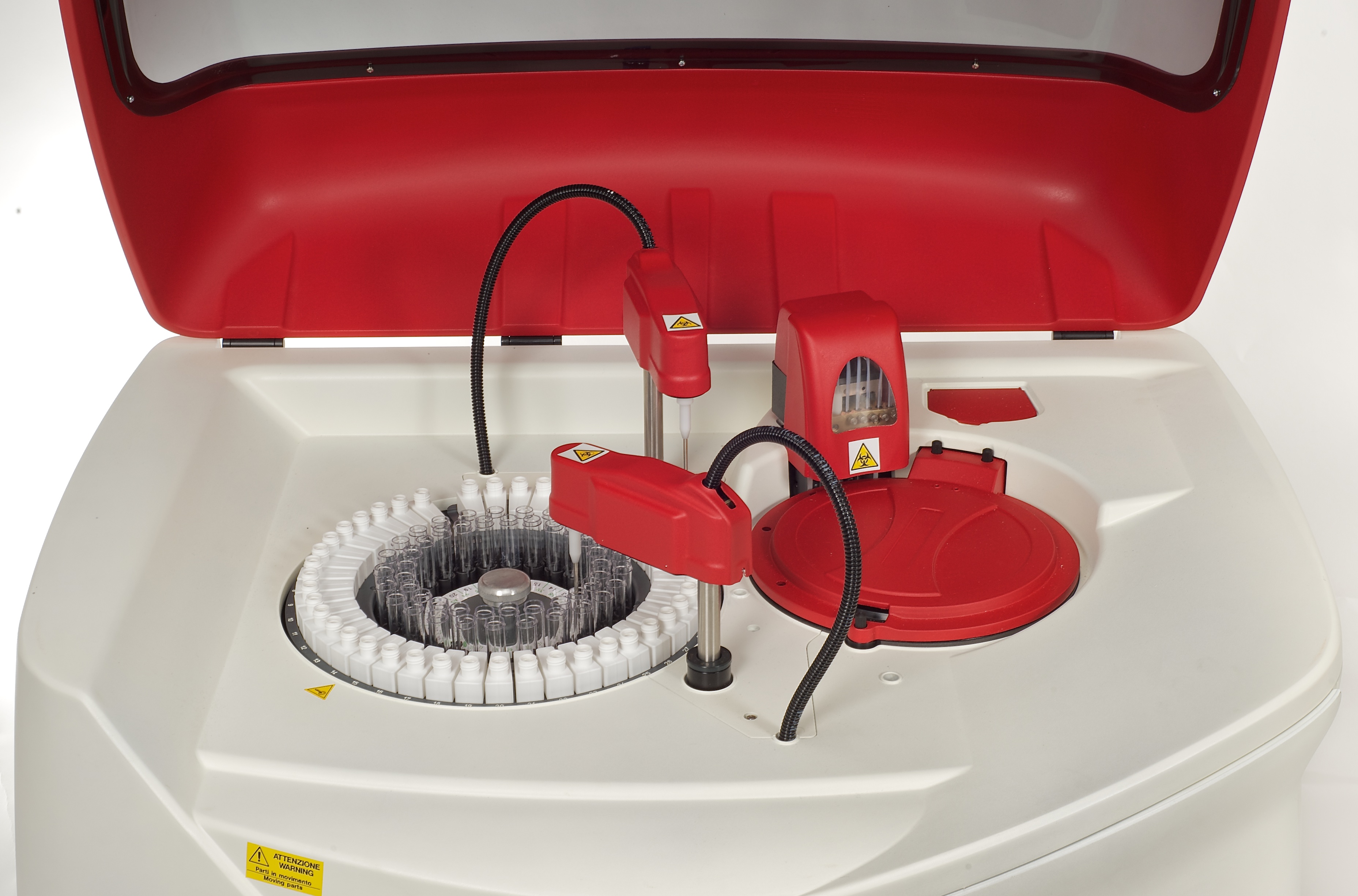

Double Arm
Up to 240 photometric tests per hour
Up to 420 tests hour with integrated ISE module (on request)

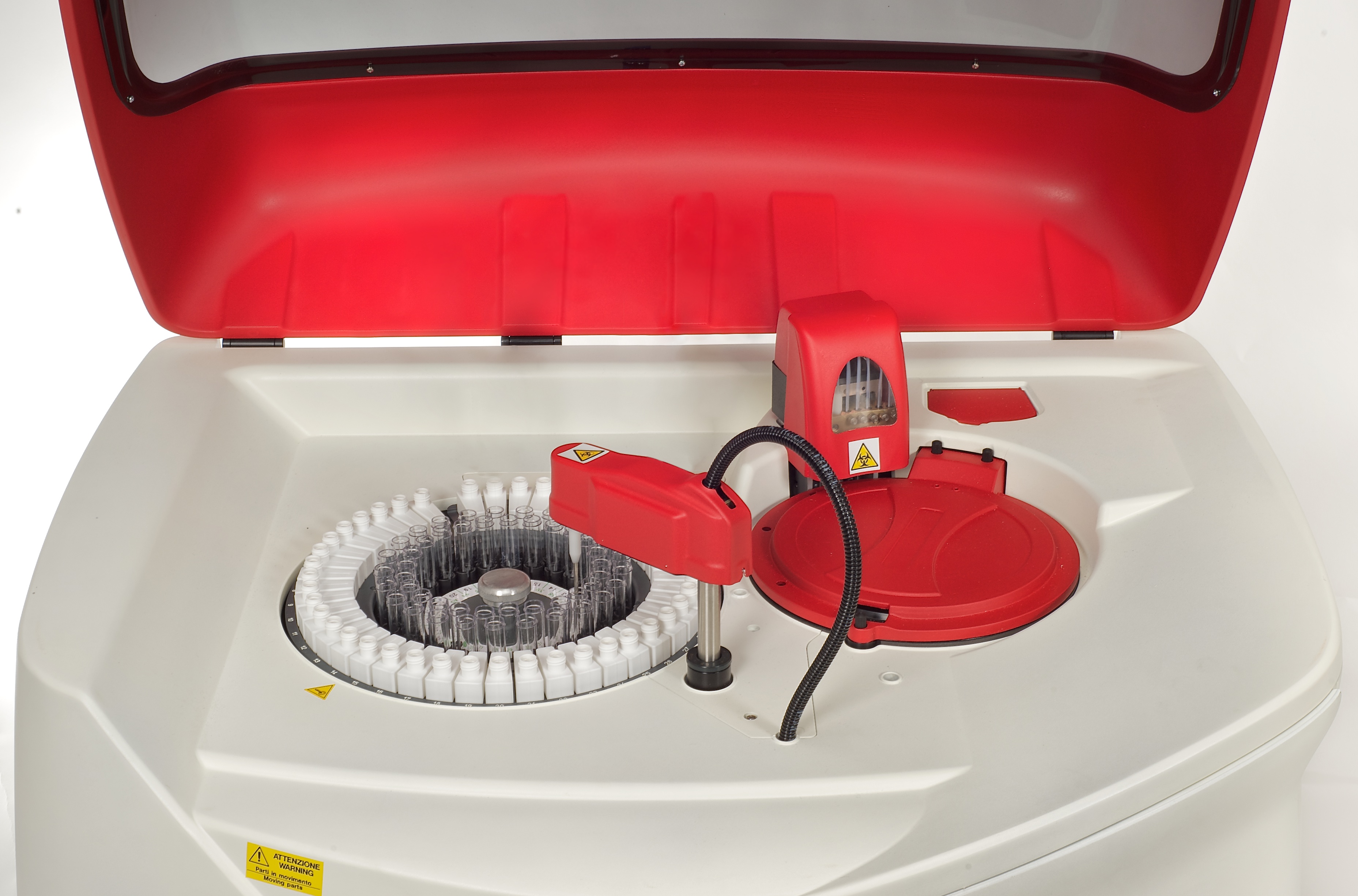

Single Arm
Up to
200 photometric tests per hour
Up to 360 tests hour with integrated ISE module (on request)

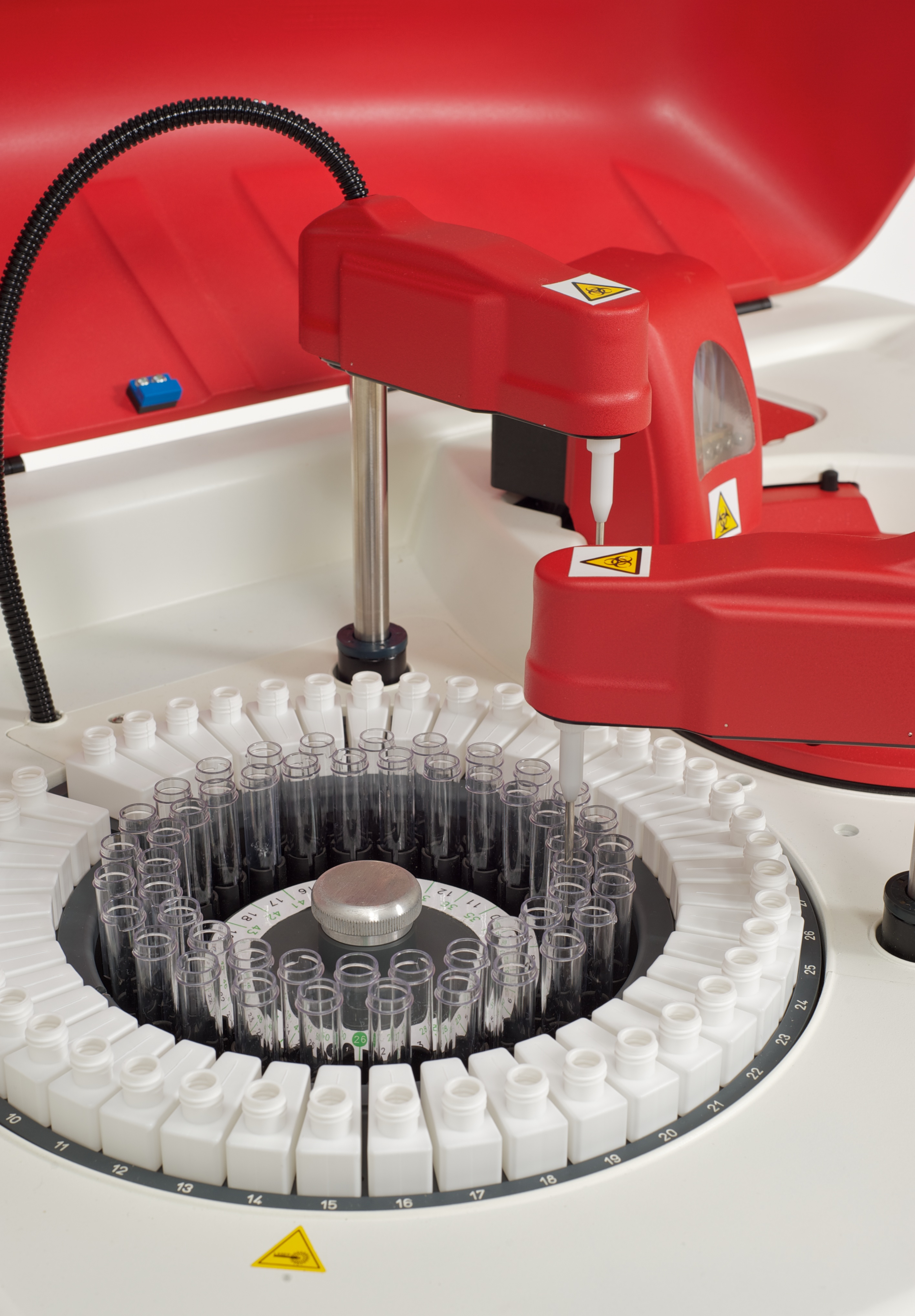

Robotic XYZ Arm

1/ 2 arm equipped with liquid level detector (capacitive) and shock sensor

Analytical methods

End point mono or bichromatic, fixed time, kinetic, differential sample blank

ISE Module

Yes, Na+, K+, Li+, Cl- in serum, plasma and diluted urine (optional)

Number of reagent positions

30 parameters on line plus diluent with 50ml R1/ 20ml R2 vials /
43 parameters on line plus diluent with 35ml R1/ 15ml R2 vials.

Reagents method

Mono, double

Number of samples / calibrators / controls

49 sample/calibrator/control positions
on primary tubes (Ø12÷13mm × 75/85mm) and sample cups (3ml)

Reagent volume

1 ÷ 400 μl for Single Arm and 1 ÷ 300 μl for Double Arm

Sample volume

1 ÷ 300 μl for Single Arm and 1 ÷ 50 μl for Double Arm

Typical reaction volume

200/250 μl

Calibration curves

Linear/non linear curves up to 8 points,
auto dilution of the calibration curve (linear regression, linear piece-wise, cubic spline, polynomial)

Reading cuvettes

80 automatic re-washable

Cuvette washing

Automatic washing station

Diluter

High Precision Micro-metering pump to dispense reagents and samples (no syringe)

Automatic dilution

Automatic / on request

Reaction temperature

+37°C ± 0.1°C

Wavelengths

8 from 340nm to 700nm plus one free position

Light source

Long life halogen lamp (2000 hours life)

Photometric linearity

0 ÷ 3.0 OD

Water consumption

less than 3.5 liters / hr

Reagent cooler

Up to 14 °C below ambient temperature

Bar-code reader

Bar-code reader integrated for samples and reagents (optional)

Real-time electronics

Modular, SMD

Power supply

100 ÷240 Vac

Quality control data

Control menu with Levy-Jennings plotted chart

Personal Computer

External, all in one (Touch screen PC)

Peripherals

CD-ROM, HD > 40 GByte

Printer

External laser

Operational system

MS Windows®

Interface to LIS host

Ethernet, Bi-directional connection

Environment temperature

18 ÷ 32°C

Environment RH

30 ÷ 70 % (without condensation)

Dimensions (WxDxH)

93x74x60 cm

Weight

About 70 kg

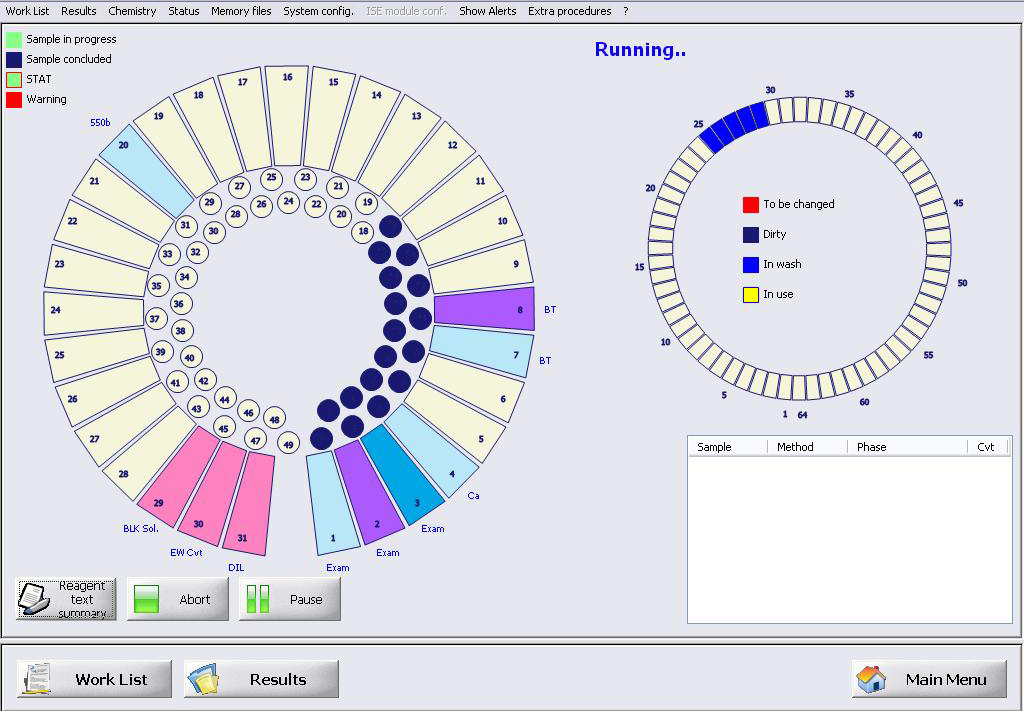

Miura 200 software is designed to meet the requirements of a wide range of customers. Easy to use and flexible, it is a powerful solution for the customer who wants a quick solution for the daily laboratory management and for the customer who wants a high customizable system.

The flexible analyser enables easy addition of new methods. It is possible to program and store almost unlimited number of protocols, arranged on a panel drawn up by the user according to his needs. Execution is pure random access with the possibility to choose the batch mode.


Main software characteristics:
  • Programmable automatic stand-by and wake-up functionalities.
  • Intuitive and modern graphical user interface.
  • 3 levels of quality controls with Levy-Jennings graph.
  • Fully bidirectional L.I.S. support with or without Host/Query.
  • Automatic pre/post dilution of the samples.
  • Calibration with linear/nonlinear curves up to 8 points, auto dilution of the calibration curve (linear regression, linear piece-wise, cubic spline, polynomial).
  • Self-diagnosis and alarm procedures are an integral part of the software.
  • Powerful archive for patients, standard and Qc results.
  • Customizable profiles to easy manage the WL.

Available Media

 * Miura brochure

MIURA 200

 The solution for all kinds of laboratories
as a main unit or a back up unit

a compact bench top random access fully automated analyser
with the performance of higher class instruments

Miura 200 - No compromise between throughput & size

THE MIURA-EASE-OF-USE-SOFTWARE GIVES YOU A HASSLE-FREE WORK FLOW ROUTINE IN SEVERAL DEMANDING SETTINGS

Miura 200 Software

Miura 200 Software


Software

Software

Software

Software

Software

Software

Miura 200
Miura 200
Miura 200
Miura 200
Miura 200
Miura 200
Miura 200
Miura 200
COMPLETE CE MARKED REAGENT PANEL (MONO OR BI-REAGENT) READY TO USE

Dedicated Reagents

The Miura family simplifies your routine work with a complete CE-IVD marked reagent panel and ensuring you a fast forward daily routine in your laboratory:
  • Ready to use 56 assays:
  • 28 enzymatic and substrate parameters
  • 28 plasma proteins
  • Stable formulations based on IFCC & DGKC recommendations for serum, plasma, urine samples
  • Miura analysers are well prepared for integrated  ISE analysis of electrolytes
  • All Miura applications are validated on Miura analysers – a perfect fit!
